From Concept to Carrier: 14 Lessons That Make Reusable Automotive Packaging Work

TL;DR: Turning a great idea for reusable packaging into a reliable production program takes more than a clever tray or a rugged material. It takes clarity on the problem to solve, the right polymer, disciplined prototyping, automation-ready features, human-centered ergonomics, a scale-smart tooling plan, and a circular end-of-life path. Below are 14 lessons we use at Vantage Plastics and Lotis Technologies to guide programs from first conversation to the final shipped carriers that run clean on the floor.

Note: This article removes all customer names and confidential details. The examples reflect work done for a leading North American automaker and its Tier suppliers while protecting their identity.

Why this matters now

Automotive launches are faster, parts are more complex, budgets are tighter, and damage allowances are near zero. Packaging has to protect A‑surfaces, move smoothly through automation, and withstand thousands of cycles. At the same time, sustainability targets are shifting from nice-to-have to must-have. The result is simple to say and hard to do: better protection at lower total cost with a smaller footprint.

What follows is a single, cohesive story that weaves together the 14 points our team returns to on every program. Think of it as a field guide you can hand to your engineers, buyers, and launch managers.

Contents

1. Start with the real problem
2. Build a cross‑functional core team
3. Map the current state with facts, not assumptions
4. Choose the material early and on purpose
5. Design for the part, not the rack
6. Prototype like you mean it
7. Test against reality, not the conference room
8. Make automation your friend
9. Protect people at the line
10. Plan a scale‑smart tooling strategy
11. Engineer for repair, not just replacement
12. Close the loop with true circularity
13. Design for data and traceability
14. Treat your supplier like a partner, not a PO

1) Start with the real problem

Every winning packaging program begins with a crisp problem statement. “We need a new tray” is not crisp. “Reduce cosmetic defects on the A‑surface below 50 ppm, improve rack density by 12 percent, and meet a four-week PPAP gate” is actionable. Put numbers next to damage, labor, floor space, and turnaround time. Align on what “good” looks like at SOP. When stakeholders agree on the finish line, design tradeoffs become faster and less political.

Checklist:

• Target damage rate and inspection method
• Rack density goal and maximum loaded weight
• Automation interfaces and pick strategy
• Launch dates, gates, and who signs off at each gate

2) Build a cross‑functional core team

Packaging succeeds when the right voices weigh in early. Pull in a packaging engineer, a line operator, a quality lead, an automation owner, an EHS rep, and a logistics planner. Add your material expert and the supplier’s project engineer. Small team, clear roles, weekly huddles. You will catch issues in hours that otherwise hide until pilot.

Tip: Nominate a single “problem owner.” When everything belongs to everyone, schedules slip.

3) Map the current state with facts, not assumptions

Before sketching the first pocket, put today’s world under a microscope. Photograph current carriers. Time the load and unload motions. Record part orientation on the line and the constraints in the rack. Measure how often a carrier gets washed, what chemicals it sees, and the temperature cycles in transport. Document the actual failure modes. The picture you draw here drives the features you need there.

Artifacts to capture:

• Part CAD with critical-to-quality surfaces
• Current carrier drawings and materials
• Conveyor widths, fork points, and lift heights
• EOAT approach angles and vacuum or finger positions

4) Choose the material early and on purpose

Material is not a late-stage detail. It is the heart of your performance and cost. Traditional urethanes have delivered soft touch and rebound, but they can be heavy, pricey, and inconsistent under temperature and chemical exposure. We often recommend VanTech®, Vantage Plastics’ proprietary elastomeric blend designed for protective packaging. It combines soft contact with cut resistance, memory, and weight savings. It thermoforms cleanly, bonds well, and supports ESD-safe options when required.

Choosing material early lets you tune pocket geometry, wall thickness, and ribbing for reality, not hope. It also locks your tooling approach, which affects budget and lead time.

Considerations:

• Contact hardness that protects the A‑surface without sticking
• Memory and rebound after load cycles
• Weight per carrier and ergonomic limits
• Wash chemistry and temperature windows
• ESD requirements and how to achieve them consistently

5) Design for the part, not the rack

Racks move trays. Trays protect parts. Start with the part. Identify contact zones that can safely carry load. Avoid anything that shifts the part during transport or unload. Use negative draft and memory of the elastomer to hold without squeeze. Build in drain paths so wash water exits quickly. Where scuff risk exists, switch to softer, replaceable wear pads placed where they matter, not everywhere.

Design moves that pay off:

• “Float” the A‑surface with stand-offs on robust features
• Add lead-in chamfers to guide operators and robots
• Use asymmetry as a natural poka‑yoke
• Design lift points for gloved hands, not ideal hands

6) Prototype like you mean it

Paper studies rarely survive first contact with the plant. We run a three‑step prototyping cadence:

1. Concept prototypes from trimmed sheet arrive fast to test hand feel, loading angle, and clearance around critical surfaces.
2. Functional prototypes use a soft tool to dial in wall thickness, draft, and ribbing. This is where we crash it, wash it, and cycle it.
3. Pilot builds from production‑intent tools validate process capability and catch the last 5 percent of surprises.

Speed here counts. Short loops keep stakeholders engaged and programs on track.

7) Test against reality, not the conference room

A carrier that looks clever on a slide can still chatter on a conveyor, stick to a robot finger, or warp in a hot trailer. Test it like it will live.

Tests that matter:

• Repeated load and unload cycles to simulate life
• Drop and edge impact on loaded carriers
• Conveyor run‑in to listen for chatter and observe tracking
• Wash cycles with your actual chemistry
• Temperature and humidity extremes seen in transport
• ESD performance if required by the build area

Lean teams think testing is a luxury. It is cheaper than rework two weeks before PPAP.

8) Make automation your friend

If robots struggle, people end up babysitting robots. Design features that help machines succeed.

• Pick points that repeat. Provide clear, consistent landings for vacuum or mechanical fingers.
• Vision targets. Flat windows and contrast edges improve detection.
• No hidden interference. Generous access for EOAT with real-world tolerances.
• Stacking discipline. Clean, self‑locating nests that prevent skew and reduce stack-related jams.

Automation readiness is not only for tomorrow’s plant. Many “manual” lines already rely on lifts, turntables, or simple pick assist tools that benefit from the same discipline.

9) Protect people at the line

Great packaging protects parts and people. Keep lift weights below ergonomic limits. Use large, glove-friendly handles with radiused edges. Eliminate pinch points. Reduce noise when trays stack or unstack. Post clear visual cues for correct orientation. When people feel the design respects them, they treat the carriers with care.

Human-centered touches:

• High-contrast markings that survive wash cycles
• Anti-snag transitions at pocket rims
• Optional soft bumpers on frequent contact edges
• Documented best practices with photos near the cell

10) Plan a scale‑smart tooling strategy

Your tooling plan is a lever for cost, lead time, and risk.

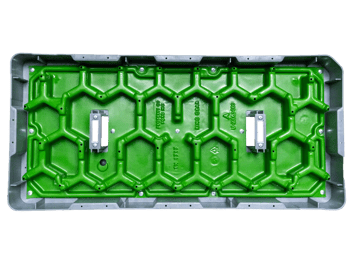

• Thermoforming vs. injection molding: Thermoforming shines for speed, cost, and flexibility. Injection molding is ideal for ultra-high volumes or when features demand it. Many programs win with both, using molded base trays plus thermoformed inserts that tune protection as parts evolve.
• Modularity: Design replaceable inserts where wear concentrates.
• Cavitation decisions: Match the number of cavities to your ramp plan, not your dream plan.
• Tooling materials: Choose aluminum and coatings that balance heat transfer with long life, and that your maintenance team can service.

Ask a hard question early: if the part changes three weeks before PPAP, how fast can you modify the tool without resetting the clock?

11) Engineer for repair, not just replacement

Packaging lives a rough life. Make field repair a first-class requirement. Replaceable wear pads, snap‑in bumpers, and serviceable labels keep carriers in rotation longer. Standardize hardware and fasteners so plant teams can maintain carriers without a hunting expedition.

Bonus: Service-friendly design turns “broken” into “fixed” in minutes, which protects your launch schedule more than any spreadsheet line item.

12) Close the loop with true circularity

Sustainability should be designed in, not bolted on. When carriers reach end‑of‑life, they should feed a circular stream, not a dumpster.

• Take‑back and sorting: We help collect, sort, and decontaminate spent carriers.
• Edge Materials Management: Our recycling division processes post‑industrial plastic into high-quality regrind.
• AirPark Plastics: We extrude new sheet from that regrind for next‑generation carriers and components.
• Design for disassembly: Make it easy to separate mixed materials so more mass goes back into productive use.

Circularity is not only a sustainability win. It reduces material volatility and improves your long‑term cost position.

13) Design for data and traceability

Trays should tell their own story. Integrate durable marking that survives wash and wear. Use lot codes that trace back to material runs and tool cavities. Consider RFID windows or data‑matrix zones where operations benefit. Better data shortens root‑cause hunts and speeds corrective action.

What good looks like:

• Human‑readable labels plus machine‑readable codes
• Cavity and mold IDs in logical places
• Wash‑resistant inks or embedded plates
• Location for optional tracker hardware without interference

14) Treat your supplier like a partner, not a PO

The most efficient programs share information early and often. Open constraints, quick decisions, and no surprises. Our teams run programs with documented gates, weekly status, risk registers, and change logs. We bring design, thermoforming, injection molding, and sheet extrusion under one roof across the Vantage Plastics family, which collapses handoffs and speeds iteration. When everyone is aligned to the same measures of success, launches feel calm even when schedules are tight.

What you should expect from us:

• A named project engineer and clear escalation path
• Early manufacturability input, not just a quote
• Prototype sprint plans with dates and owners
• PPAP documentation and line‑side support at launch

A day in the life of a winning carrier

Picture a thermoformed tray with a soft, memory‑rich contact surface that cradles the A‑surface and holds the part with just enough grip. It loads either by a robot or by a gloved operator without a fight. It stacks with a satisfying, low‑noise click that keeps columns straight on a cart. It rides a conveyor without chatter. It shrugs off a hot truck, a cold loading dock, and a caustic wash. When it finally wears, the pads get swapped in minutes. Years later, the carrier returns through our circular stream and comes back to life as new sheet and new trays. That is the end‑to‑end picture these 14 lessons build toward.

Frequently asked questions

Is ESD‑safe packaging available with soft‑touch protection?
Yes. We can deliver ESD‑compliant trays and dunnage while maintaining a soft, protective interface. The right additive package and process control ensure consistent performance through wash cycles.

How do you balance rack density with protection?
We start with the part’s critical surfaces, then tune pocket geometry and material hardness to minimize wall thickness without inviting contact in the wrong places. In many cases, changing orientation or alternating pattern yields density gains without risk.

What if our line is manual today but may be automated later?
We design “automation‑ready” by default. Pick windows, vision-friendly landmarks, and EOAT access are part of our standard toolkit, so you do not paint yourself into a corner.

How long do carriers last?
Service life depends on the environment, handling discipline, and wash chemistry. By designing wear points to be replaceable and enabling field repair, we extend useful life significantly while preserving fit and function.

Can you recycle mixed-material carriers?
Yes, with planning. We design for fast disassembly so the majority of mass re-enters the circular stream. Edge Materials Management handles sorting and reprocessing, and AirPark Plastics turns that back into new sheet.

What to do next

1. Bring us your part CAD and constraints. We will run a quick discovery and recommend a right‑sized path to prototype.
2. Ask for a VanTech sample. Get a feel for the contact surface and memory.

Final thought

Great packaging is invisible on the line. It simply works. These 14 lessons keep teams focused on the few decisions that drive most of the outcome: begin with a sharp problem definition, choose the right material, iterate fast, respect both robots and people, plan for scale, and recycle back into the stream when the carrying is done. If you want to explore how this approach can improve your next launch, our team is ready to help.
