Plastic Thermoforming Explained

Plastic thermoforming is a manufacturing process that transforms plastic sheets into three-dimensional shapes by applying heat and pressure. It plays a crucial role in the modern manufacturing landscape, enabling the production of various plastic components and products used across numerous industries, including automotive, medical, packaging, and consumer goods.

Thermoforming is highly valued for its versatility, cost-effectiveness, and ability to create custom designs. Thermoforming has become a preferred method for producing lightweight, durable, and complex plastic parts by providing manufacturers and suppliers with flexible solutions. The importance of thermoforming is evident in its widespread applications, where it meets industry demands for efficient production processes, reduced material waste, and innovative design capabilities.

Thermoforming is a process that involves heating a plastic sheet until it becomes pliable and then shaping it over a mold to achieve the desired form. Once the plastic cools and solidifies, it retains the shape of the mold, resulting in a finished product that is both durable and precise.

This process can be executed using various methods, such as vacuum forming and pressure forming, which we will discuss in more detail later in this guide. Thermoforming is distinguished by its ability to produce thin and thick gauge products, making it suitable for everything from simple packaging solutions to heavy-duty automotive components.

The Evolution of Thermoforming

The roots of thermoforming can be traced back to the mid-20th century when technological advancements began to transform manufacturing processes. Developed initially to create plastic packaging, thermoforming has evolved significantly due to innovations in materials and machinery. Early thermoforming methods were limited to simple designs and shapes, but modern advancements have created more complex and durable plastic components.

Today, thermoforming benefits from sophisticated technologies that allow for precise control over temperature, pressure, and mold design. These innovations have expanded its capabilities, leading to its widespread adoption in diverse sectors. The evolution of thermoforming has also been driven by the need for sustainable and cost-effective manufacturing solutions, making it a competitive alternative to other production methods like injection molding and metal fabrication.

Both pressure forming and vacuum forming are thermoforming techniques used to produce custom parts and components by heating plastic and molding it around a form.

Vacuum Forming

Vacuum forming is one of the most widely used thermoforming techniques. In this process, a heated plastic sheet is stretched over a mold, and a vacuum is applied to pull the sheet tightly against the mold surface, creating the desired shape. This method is ideal for producing large, lightweight parts with relatively simple designs. In this process, the gauge of the sheet material can be relatively thin or up to a half inch or more in thickness.

Technical Considerations:

• Material Suitability: Common materials for vacuum forming include ABS (Acrylonitrile Butadiene Styrene), HDPE (High-Density Polyethylene), and PVC (Polyvinyl Chloride) due to their favorable thermoforming properties.
• Precision Level: Vacuum forming offers moderate precision, making it suitable for components where very tight tolerances are not critical.
• Applications: Frequently used in producing items like packaging trays, automotive interior components, and protective covers.

Pressure Forming

Pressure forming builds upon the principles of vacuum forming but introduces an additional step of applying high pressure to the heated plastic sheet, which enhances its detail and definition when it conforms to the mold. This method allows for more intricate designs and a higher detail level than vacuum forming.

Technical Considerations:

• Material Suitability: Pressure forming is compatible with materials like PC (Polycarbonate), PETG (Polyethylene Terephthalate Glycol), and other thermoplastics that can withstand higher pressures without deformation.
• Precision Level: The use of high-pressure results in sharp edges, fine details, and textured surfaces, making it suitable for parts that require aesthetic precision.
• Applications: Ideal for creating high-quality panels, enclosures, and housings, especially in industries where appearance and structural integrity are crucial, such as medical equipment and consumer electronics.

Thermoforming encompasses several distinct processes that vary in complexity, precision, and suitability for different applications. Understanding the nuances of these methods is crucial for selecting the right approach based on the material properties and desired product specifications.

Single-Sheet Thermoforming

Single-sheet thermoforming is the most basic form of thermoforming, where a single plastic sheet is heated and formed over a mold. Despite their lighter weight, these pallets are robust enough to handle considerable loads, making them ideal for diverse logistical needs.

Technical Considerations:

• .150 Gauge: Ideal for lightweight applications, these pallets provide a cost-effective solution with a strong balance between weight and durability.
• .250 Gauge: A mid-range option, offering increased strength for more demanding tasks while remaining cost-efficient.
• .350 Gauge: Designed for heavy-duty applications, this thicker gauge pallet can hold substantial amounts of weight in static compression tests, offering unparalleled strength and reliability.
• Applications: Used for creating items such as industrial trays, packaging inserts, and other products where a single-layer structure suffices.

Twin-Sheet Thermoforming

Twin sheet thermoforming is a more advanced process involving two plastic sheets heated simultaneously and formed over separate molds. The two sheets are bonded through compression while hot to create a hollow part with enhanced structural integrity.

Technical Considerations:

• Strength and Durability: Twin sheet thermoforming provides greater rigidity and impact resistance. In rigorous testing, twin sheet pallets held significantly more weight, withstanding up to 20,000 lbs. without deflection.
• Material Efficiency: Allows different materials on each sheet to achieve specific properties, such as UV resistance on the exterior and chemical resistance on the interior.
• Applications: Commonly used in automotive components, HVAC ducts, and large, hollow parts that benefit from its double-wall construction.

Heavy Gauge Thermoforming

Heavy gauge thermoforming uses thicker plastic sheets, typically between 0.125 and 0.500 inches, to create durable and robust parts. This process is often used for industrial and commercial products that require long-lasting performance.

Technical Considerations:

• Mold Construction: Heavy gauge thermoforming requires robust molds, often made from aluminum or steel, to handle the stress of forming thicker materials.
• Applications: Ideal for automotive parts, machinery components, and custom equipment enclosures where strength and durability are paramount.

Thin Gauge Thermoforming

Thin gauge thermoforming, on the other hand, involves sheets less than 0.060 inches thick, making it suitable for high-volume production of lightweight parts.

Technical Considerations:

• Cost Efficiency: Thin gauge processes are faster and less expensive, primarily used for disposable or single-use products.
• Applications: Widely used in packaging solutions, such as blister packs, clamshells, and food containers, where lightweight and cost-effective materials are essential.

The selection of materials is a critical aspect of the thermoforming process, as it directly influences the product's performance, durability, and application suitability. In thermoforming, the choice typically revolves around thermoplastics, which offer flexibility, recyclability, and precise molding capabilities. To better understand their role, it's helpful to compare thermoplastics to thermoset plastics, as the two differ significantly in how they behave under heat and are used.

Thermoset plastics undergo an irreversible chemical reaction during curing, forming a rigid, cross-linked structure that cannot be reshaped or re-melted. This gives thermosets superior heat resistance and mechanical strength, making them inflexible and non-recyclable. Due to these properties, thermosets are commonly found in high-temperature applications such as engine components and electrical insulation.

In contrast, thermoplastics consist of linear or branched polymer chains that soften when heated and harden upon cooling. This allows them to be repeatedly reheated, reshaped, and recycled, making them the ideal choice for thermoforming. Thermoplastics' viscoelastic behavior means they deform under heat in a controlled way, which is crucial for creating precise, molded parts. Their flexibility and recyclability make them suitable for a wide range of products, from automotive parts to medical devices and consumer goods.

Let's explore some of the most common plastic resins used in the thermoforming process.

• PET (Polyethylene Terephthalate): High barrier properties against water vapor, CO₂, and oxygen; excellent chemical resistance.
• HDPE (High-Density Polyethylene): Excellent environmental stress cracking resistance; high chemical and moisture resistance.
• HMWPE (High Molecular Weight Polyethylene): Superior impact resistance; excellent abrasion and chemical resistance.
• ABS (Acrylonitrile Butadiene Styrene): High impact resistance; excellent surface finish; not UV resistant unless treated.
• PC (Polycarbonate): Outstanding impact resistance; good UV resistance with additives; good dimensional stability.
• TPO (Thermoplastic Olefin): Good impact resistance; flexible; UV-stable and weather-resistant.
• TPU (Thermoplastic Urethane): High elasticity; excellent abrasion, chemical, and oil resistance.
• PS (Polystyrene): Low water absorption; good thermal insulation; not UV or impact-resistant.
• PMMA (Polymethyl-methacrylate) (Acrylic): High optical clarity; excellent UV and weather resistance.

Thermoforming offers numerous advantages, making it a preferred manufacturing method for plastic components, especially when compared to injection molding and metal fabrication. Key benefits include cost-efficiency, design flexibility, and faster production capabilities, making it ideal for various industries. Thermoforming's ability to overcome complex design challenges and create large, seamless parts enhances its value for manufacturers seeking precise, customizable solutions. Let's explore the various benefits that thermoforming provides to manufacturers.

Cost-Effectiveness

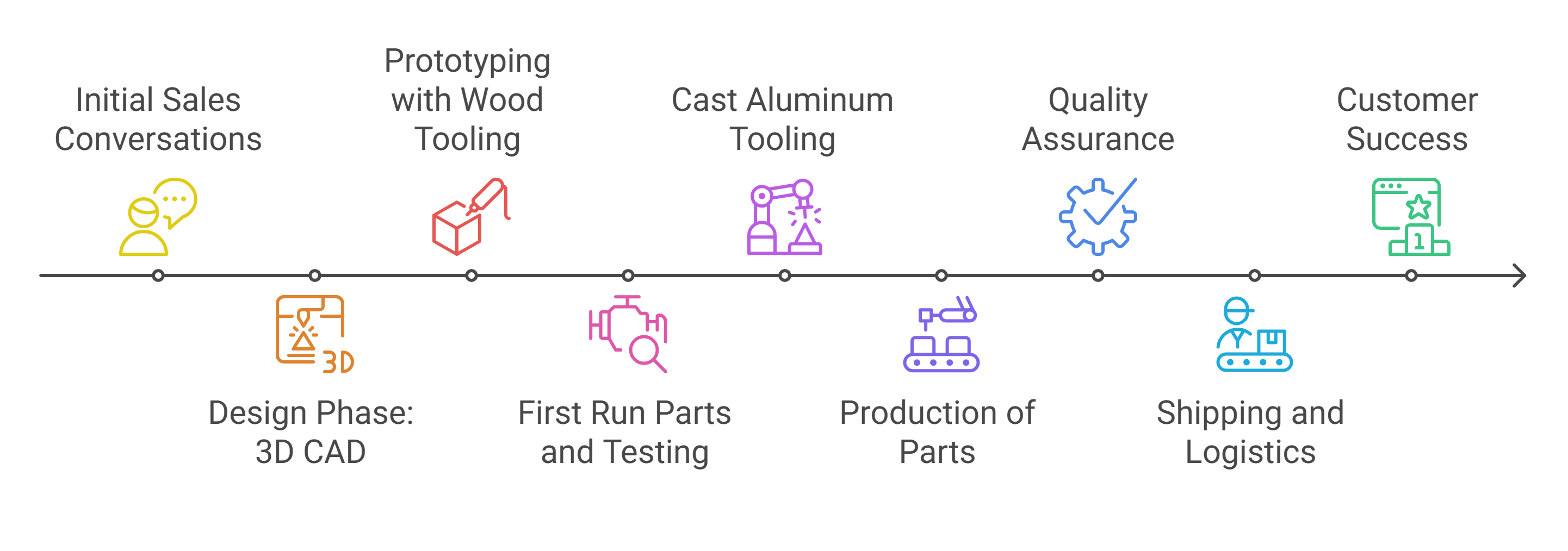

Thermoforming is cost-efficient, primarily due to the lower tooling costs and faster setup times. Unlike injection molding, which requires complex and expensive steel molds, thermoforming utilizes simpler, more affordable molds made from materials like aluminum. Thermoforming molds generally start with a wood prototype tool from which product samples can be formed for review. This significantly reduces initial investments and enables quicker mold fabrication and modifications.

• Lower Tooling Costs: Aluminum and other cost-effective materials are used for thermoforming molds, making them far cheaper than the steel molds required for injection molding.
• Faster Lead Times: Simpler mold designs result in quicker turnaround times, enabling rapid prototyping and custom projects.
• High Material Yield: Thermoforming processes typically use over 90% of the plastic sheet, minimizing waste and optimizing material usage.
• Thermal Efficiency: The high thermal conductivity of aluminum molds ensures rapid heating and cooling cycles, reducing energy consumption and speeding up production times.

Design Flexibility

Thermoforming offers a high degree of design versatility, allowing manufacturers to easily create complex shapes, intricate details, and large-scale parts. Its flexibility extends to mold design, accommodating adjustable draft angles and supporting the creation of deep-draw parts, undercuts, and multi-part integrations, which are challenging in other processes like injection molding.

• Complex Geometries: Thermoforming supports deep-draw designs and intricate geometries, making it suitable for various products.
• Surface Finishes: Advanced thermoforming techniques allow textures, logos, and other finishes to be applied directly during molding, reducing the need for post-processing.
• Variable Wall Thickness: Thermoforming enables precise material thickness control, enhancing parts' mechanical performance in critical areas.
• Large-Scale Components: Thermoforming can produce large, seamless parts without requiring joints or welds, improving structural strength and aesthetics.
• Complex Part Integration: Twin sheet thermoforming and other advanced techniques enable the creation of multi-layered parts with enhanced rigidity, insulation, or specific functional properties.

Faster Production Times

Thermoforming is known for its efficiency in both small and large production runs. The process has shorter cycle times than injection molding, especially for larger parts, making it an excellent choice for industries requiring quick, high-volume product delivery.

• Shorter Cycle Times: Thermoforming cycle times per part are typically much faster than injection molding.
• Automation: Modern thermoforming machines often feature robotic material handling and in-line trimming, further improving production speed and consistency.
• Scalability: Thermoforming easily scales from small batches to mass production, offering flexibility without significantly increasing costs.
• Tooling Adaptability: Thermoforming molds are more easily modified, allowing quicker changeovers between product runs and enhancing manufacturing flexibility.
• Rapid Prototyping: Thermoforming molds' relatively low cost enables manufacturers to produce prototypes quickly, allowing faster design iterations and modifications without high retooling expenses.

Overcome Design Challenges

Thermoforming excels at addressing complex design challenges, particularly when creating large or intricate parts that require precision and consistency. The process allows manufacturers to integrate multiple components into a single part, streamlining the assembly process and reducing overall production costs.

• Custom Solutions: Thermoforming supports a high degree of customization, enabling manufacturers to create parts with specific features such as integrated hinges, fasteners, or structural reinforcements.
• Functional Features: These integrated features reduce the need for additional components and simplify assembly, making the manufacturing process more efficient.



Thermoformed plastics offer distinct advantages over traditional materials like cardboard, metal, and wood, especially in terms of weight, durability, and adaptability. Below is a technical breakdown of thermoformed plastics' key benefits in industrial applications compared to alternative solutions.

Lightweight Properties

One of the most significant benefits of thermoformed plastics is their lower material density compared to metals. Many plastics have densities ranging from 0.9 to 1.5 g/cm³, significantly lighter than metals like aluminum (2.7 g/cm³) and steel (7.85 g/cm³). This reduced density leads to lighter components, improving fuel efficiency and making them easier to handle and transport.

• Fuel Efficiency: According to the Office of Energy Efficiency and Renewable Energy, a 10% reduction in vehicle weight can improve fuel efficiency by 6-8% in industries like automotive and aerospace. By replacing metal with lightweight thermoformed plastics, manufacturers achieve significant energy savings and lower greenhouse gas emissions.

Corrosion Resistance

The molecular structure of thermoformed plastics such as HDPE and PETG provides excellent resistance to chemical reactions. When exposed to acids, alkalis, and salts, these highly stable materials prevent oxidative corrosion that commonly affects metals.

• Chemical Stability: Thermoformed plastics resist corrosion, making them ideal for use in harsh environments where metal components would degrade. In applications with frequent exposure to moisture and chemicals, thermoformed polymers maintain their integrity, leading to longer product life.
• Enhanced Barrier Properties: Certain thermoformed plastics can be engineered to offer enhanced protection against gas, moisture, and chemical permeation, adding further durability.

Impact Resistance and Durability

Thermoformed plastics exhibit excellent impact resistance and energy absorption, which makes them ideal for high-stress applications. These elastic properties allow thermoformed plastics to deform under stress without cracking, absorbing energy and protecting the part from damage.

Thermoformed plastics can absorb significant impact energy, preventing fractures and maintaining structural integrity, even under extreme conditions.

Temperature Resistance

Advanced thermoforming materials can perform in a wide range of temperatures. This broad thermal operating range ensures that thermoformed components retain their mechanical properties in both high-heat and low-temperature environments.

• Thermal Stability: Whether exposed to extreme cold or high heat, thermoformed plastics maintain their strength and flexibility, making them suitable for various industrial applications. ABS, for example, retains its mechanical properties even in temperatures exceeding 100°C, while PC remains highly resistant to heat without losing impact resistance.

Thermoforming is a highly adaptable, cost-effective manufacturing process with broad applications across various industries. Its ability to produce complex geometries and large parts with precision makes it an essential method in sectors such as automotive, medical, packaging, and construction. Below is a look at how thermoforming is utilized in key industries.

Automotive Industry

Automotive thermoforming is essential for producing lightweight, durable parts that improve vehicle performance and fuel efficiency. It is used for intricate interior components like dashboards and door panels, under-the-hood parts such as battery covers and engine housings, and contributes to weight reduction by replacing heavier materials like steel, enhancing fuel efficiency. It is also critical for material handling applications as the automotive industry was one of the first to adopt reusable/recyclable plastic containers, pallets, and totes, which is often called dunnage.

Medical Industry

Thermoformed plastics are ideal for medical equipment and are commonly used for device housings that require sterility and durability. These materials comply with FDA and ISO standards and are compatible with sterilization processes. Thermoformed trays provide secure packaging for surgical instruments, and blister packs protect pharmaceuticals from moisture and contamination. The medical industry is also beginning to turn more and more to thermoformed plastics for transporting medical equipment to hospitals and laboratories. This provides a much more sanitary approach compared to other materials.

Packaging

Thermoformed plastics like PET and polystyrene are commonly used for food and beverage containers, offering excellent barrier properties to preserve product freshness. It also enables the creation of shock-absorbing protective packaging for electronics and other delicate items.

Construction Materials

Thermoformed products such as insulation panels, roofing membranes, and architectural elements provide durability, thermal resistance, and customizability in building applications. These materials are lightweight and moisture-resistant, ideal for structural and decorative components.

Consumer Goods and Electronics

Thermoforming produces robust, customizable housings for electronics like computer cases and appliance enclosures. The versatility of thermoplastics allows manufacturers to tailor product properties such as texture and finish, aligning with functional and branding requirements.

Advanced Applications

Thermoforming is continually evolving to meet the demands of modern industries.

• Intelligent Packaging: Smart packaging solutions incorporating RFID tags or sensors are increasingly being produced through thermoforming, enabling real-time tracking and monitoring within supply chains.
• Sustainable Packaging: The development of recyclable and biodegradable thermoplastics supports environmentally friendly packaging solutions, reducing waste and contributing to sustainability efforts.
• Automation: As more and more automation is being incorporated into operations around the world, many thermoformed material handling products are being designed to interface with automation

Sustainability has become a central focus in modern manufacturing, but is thermoformed plastic recyclable? As industries seek eco-friendly alternatives and strive to reduce their environmental footprint, thermoforming offers several advantages due to its recyclability, material efficiency, and innovative approaches to utilizing sustainable materials. Life cycle analysis has rightly become a focus for improving and achieving sustainability goals among responsible businesses today. Recycling solutions are continuously making an impact on processing plastic annually.

• Material Recovery: Many thermoformed plastics like PET, HDPE, and polypropylene (PP) are highly recyclable. These materials can be reprocessed multiple times without significantly degrading their mechanical properties, making them suitable for closed-loop recycling systems.

• Use of Recycled Content: Incorporating recycled content into new thermoformed products has become standard practice. For example, using recycled PET (rPET) or High Molecular Weight Polyethylene (HMWPE) in packaging applications reduces the demand for virgin resin and helps divert plastic waste from landfills.
• Lightweighting Strategies: The focus on lightweighting in thermoformed designs not only reduces material usage but also decreases transportation emissions due to the reduced weight of the final products. This is particularly important in the automotive and aerospace industries, where fuel efficiency is a priority.
• Optimized Material Utilization: Modern thermoforming techniques often incorporate precise sheet cutting and nesting strategies that maximize material usage, reducing trim waste to less than 10%.
• Scrap Reclamation: State-of-the-art thermoforming facilities have in-house systems to collect, granulate, and reintroduce scrap material directly back into the production cycle, promoting a zero-waste manufacturing approach.
• Compliance with Global Standards: Thermoforming manufacturers increasingly adhere to international sustainability standards.
